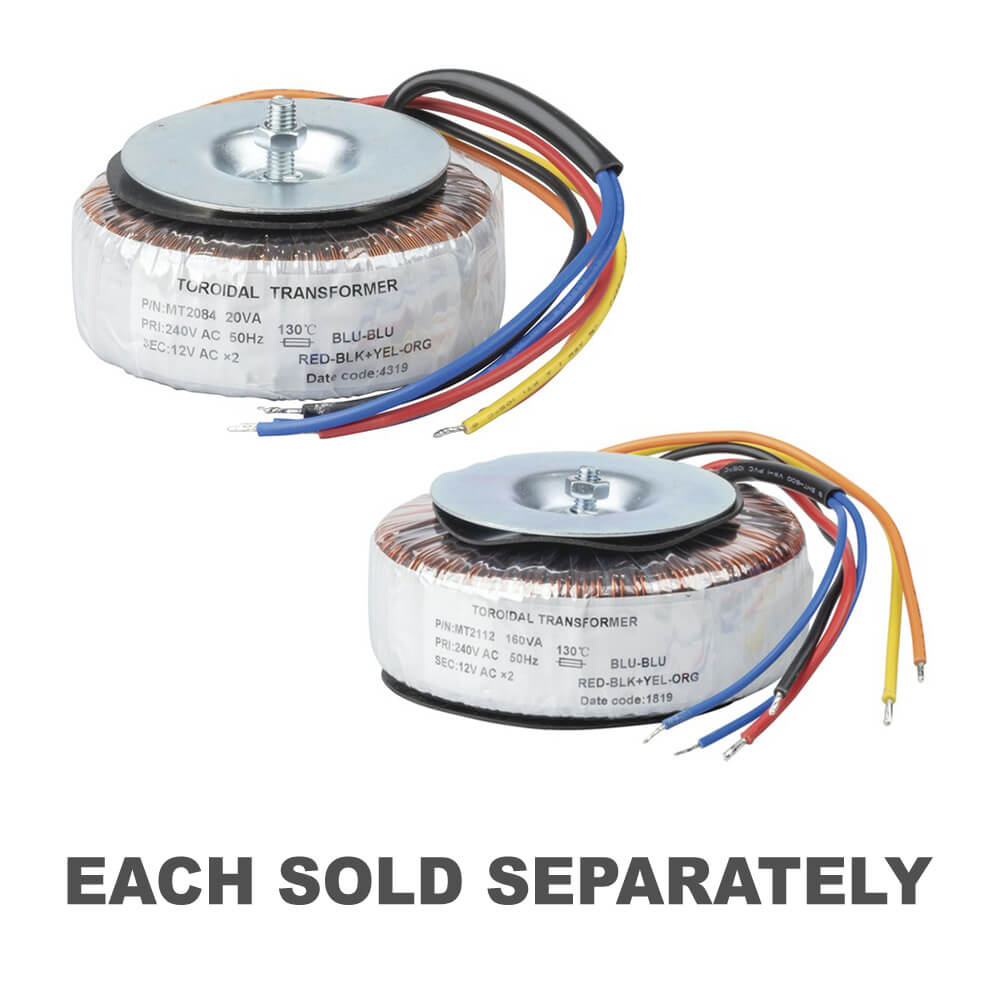

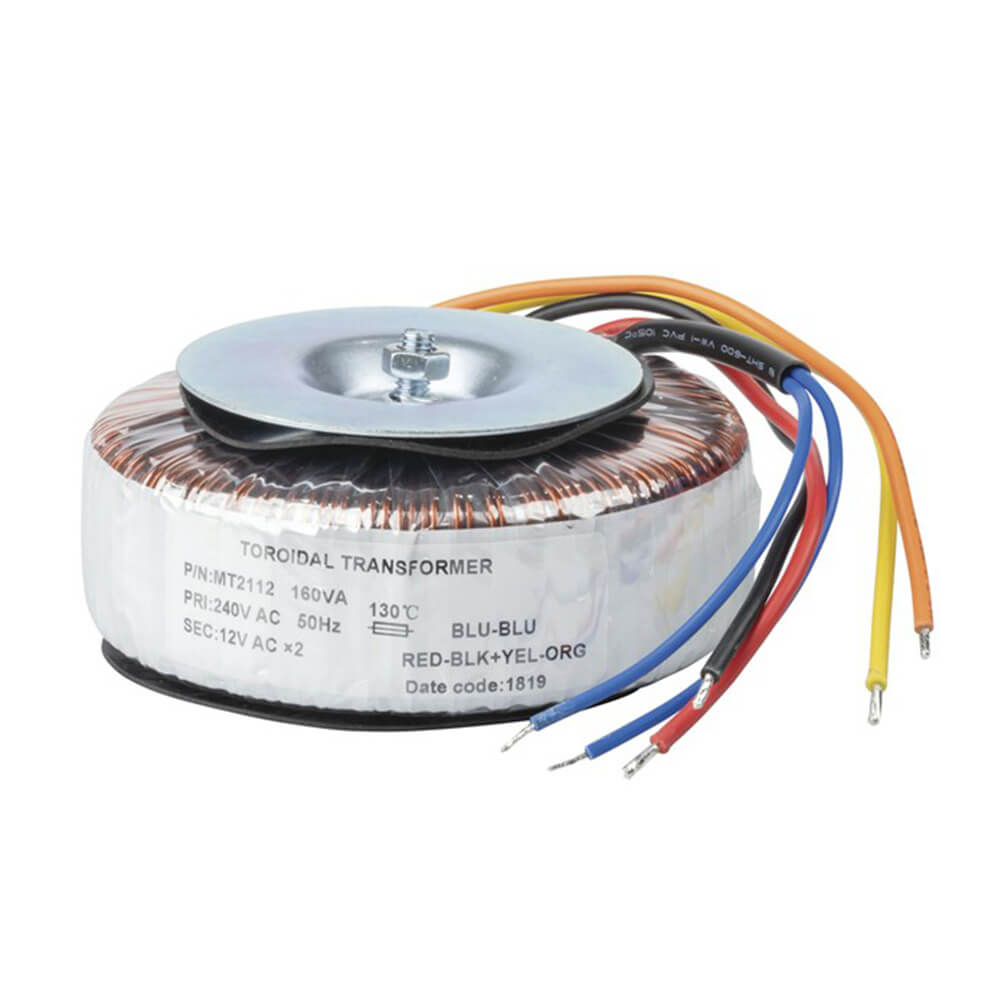

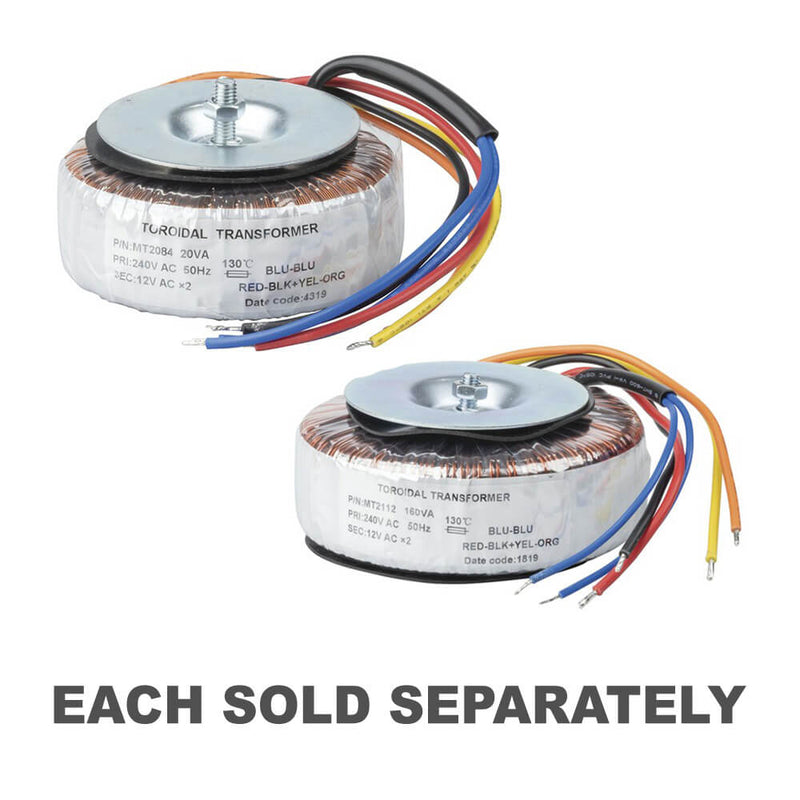

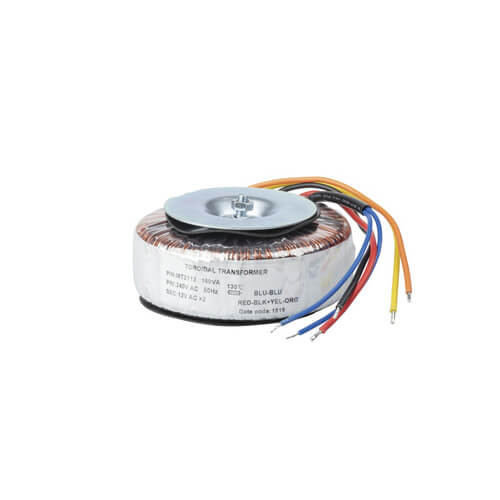

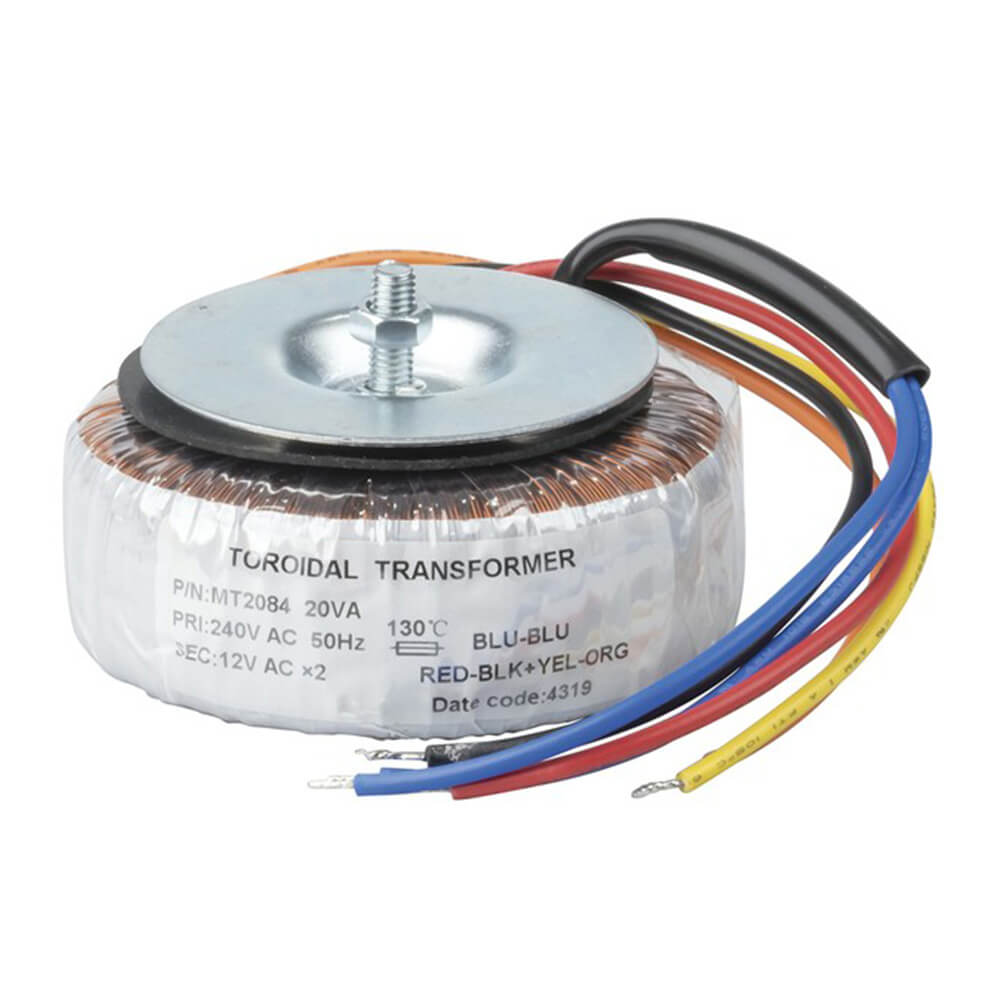

Toroidal Low Profile Transformer (12+12V)

TechBrandsSKU: 165160

ACHETEZ PLUS, ÉCONOMISEZ PLUS !
ACHETER 2 OBTENIR 2% OFF
ACHETER 3 OBTENIR 4% OFF
.......... ..........
ACHETER 11 OBTENIR 20% OFF

    • AC current rating : 13.33A
    • AC Voltage rating : 24V
    • Continuous Power : 160VA
    • Height : 44mm
    • Diameter : 110mm
    • Packaged Volume : 0.94l
    • Packaged Weight : 1.8kg
    • Packaged Length : 12.5cm
    • Packaged Width : 12.5cm
    • Packaged Height : 6cm
    • Type of Transformer : Toroidal
    • Secondary Winding Configuration : Dual Winding
    • Diameter : 34mm

Price:
Sale price€85,95 EUR
Stock:
In stock
 More payment options
delivery
Expected Delivery: FR, before Fri, Jun 27, 2025


Description

WHY A TOROID?

- Smaller size and weight to meet modern slimline requirements

- Low electrically induced noise demanded by compact equipment

- High efficiency enabling conservative rating whilst maintaining size advantages

- Simple, quick, single bolt mounting

The Toroidal transformers is now accepted as the standard in the industry, quality mode to ISO 9000 overtaking the obsolete laminated type. Industry has been quick to recognise the advantage toroidals offer in size, weight, and lower radiated field.

Current ratins on toroidal transformers.

Can be used in 2 ways

A) Both secondary windings in series - double volts

B) Both secondary windings in parallel - higher amps. The windings need to be connected in phase.

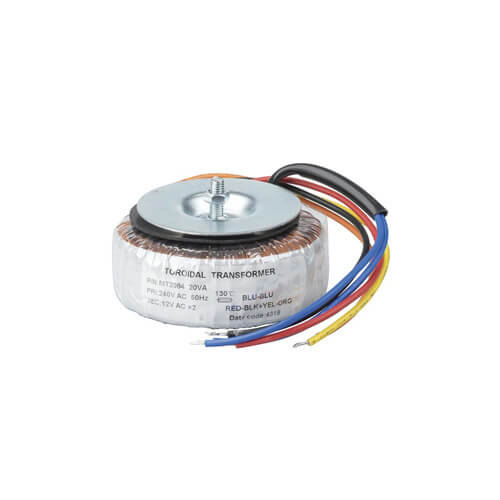

20VA LOW PROFILE

The height is only 32mm, which means they will fit into a 44mm rack case.

- Size 0/D 75, I/D 27 x 32mm

Secondary Series Secondary Parallel

Cat


Product Specifications

  • AC current rating : 13.33A
  • AC Voltage rating : 24V
  • Continuous Power : 160VA
  • Height : 44mm
  • Diameter : 110mm
  • Packaged Volume : 0.94l
  • Packaged Weight : 1.8kg
  • Packaged Length : 12.5cm
  • Packaged Width : 12.5cm
  • Packaged Height : 6cm
  • Type of Transformer : Toroidal
  • Secondary Winding Configuration : Dual Winding
  • Diameter : 34mm
  • Length : 12.5 cm
  • Width : 12.5 cm
  • Height : 6 cm

You may also like

Toroidal Low Profile Transformer (20V)Toroidal Low Profile Transformer (20V)
TechBrands Toroidal Low Profile Transformer (20V)
Sale price€38,95 EUR
In stock
ACHETEZ PLUS, ÉCONOMISEZ PLUS !
Choose options

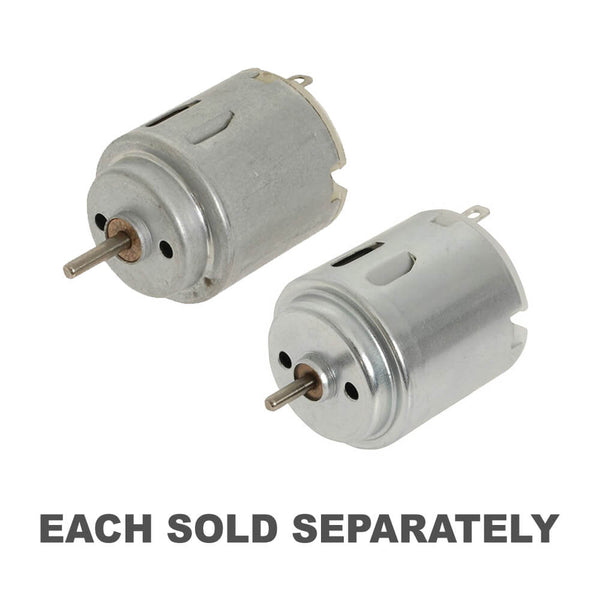

Robotics Replacement Hobby MotorRobotics Replacement Hobby Motor
TechBrands Robotics Replacement Hobby Motor
Sale price€13,95 EUR
In stock
ACHETEZ PLUS, ÉCONOMISEZ PLUS !
Choose options

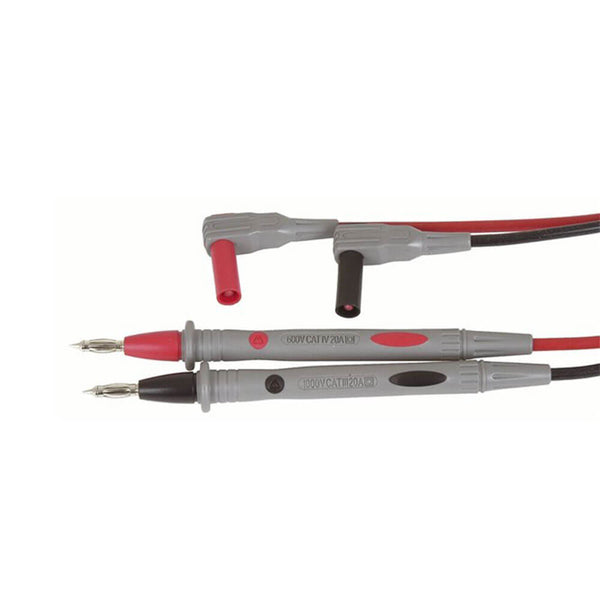

Professional Cat IV Multimeter Test Probe 20A 1200mm
Jaycar Professional Cat IV Multimeter Test Probe 20A 1200mm
Sale price€38,95 EUR
In stock
ACHETEZ PLUS, ÉCONOMISEZ PLUS !

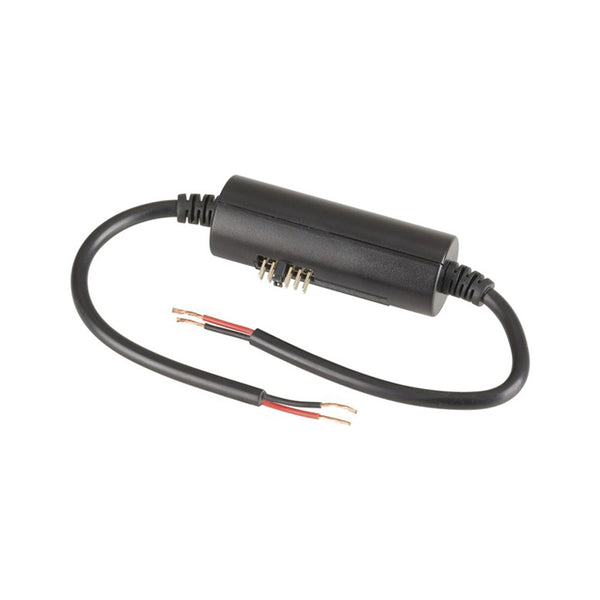

Multi-Voltage Regulated Adaptor ModuleMulti-Voltage Regulated Adaptor Module
TechBrands Multi-Voltage Regulated Adaptor Module
Sale price€20,95 EUR
In stock
ACHETEZ PLUS, ÉCONOMISEZ PLUS !
Multi-Tapped Dual Type 2167 Transformer 9V-24V 5A
TechBrands Multi-Tapped Dual Type 2167 Transformer 9V-24V 5A
Sale price€38,95 EUR
In stock
ACHETEZ PLUS, ÉCONOMISEZ PLUS !

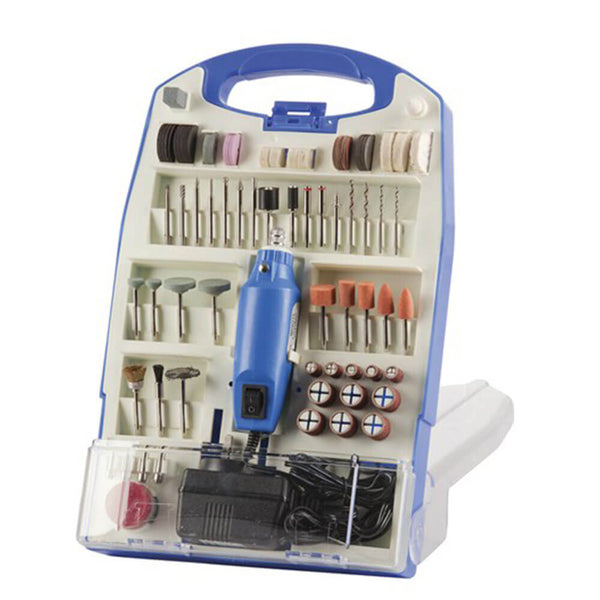

110 Piece Rotary Tool Set w/ PSU and Case (12000RPM 12V)110 Piece Rotary Tool Set w/ PSU and Case (12000RPM 12V)
LatestBuy 110 Piece Rotary Tool Set w/ PSU and Case (12000RPM 12V)
Sale price€60,95 EUR
In stock
ACHETEZ PLUS, ÉCONOMISEZ PLUS !

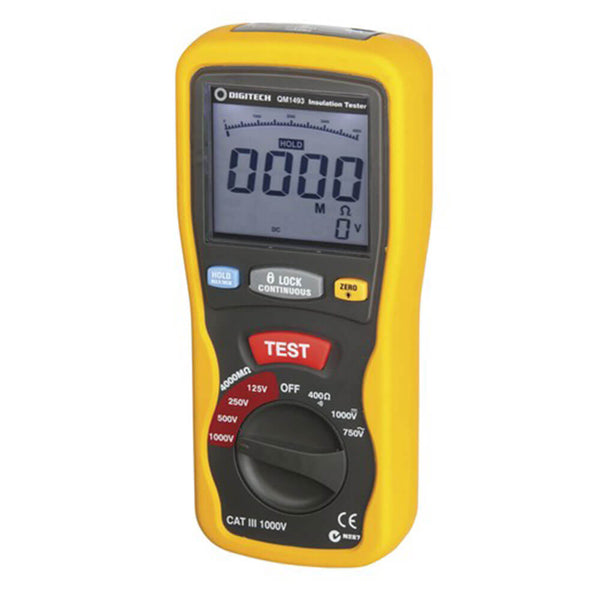

Insulation Digital Tester/Multimeter (CatIII 1000V)Insulation Digital Tester/Multimeter (CatIII 1000V)
LatestBuy Insulation Digital Tester/Multimeter (CatIII 1000V)
Sale price€311,95 EUR
In stock
ACHETEZ PLUS, ÉCONOMISEZ PLUS !

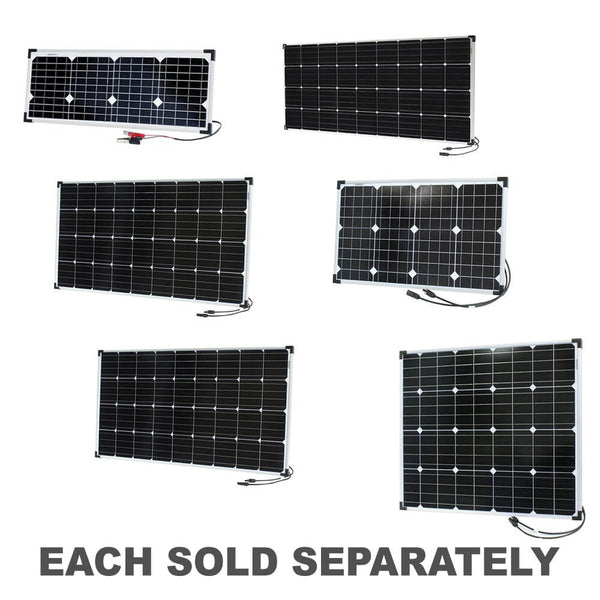

12V Monocrystalline Solar Panel with Clips/Lead12V Monocrystalline Solar Panel with Clips/Lead
